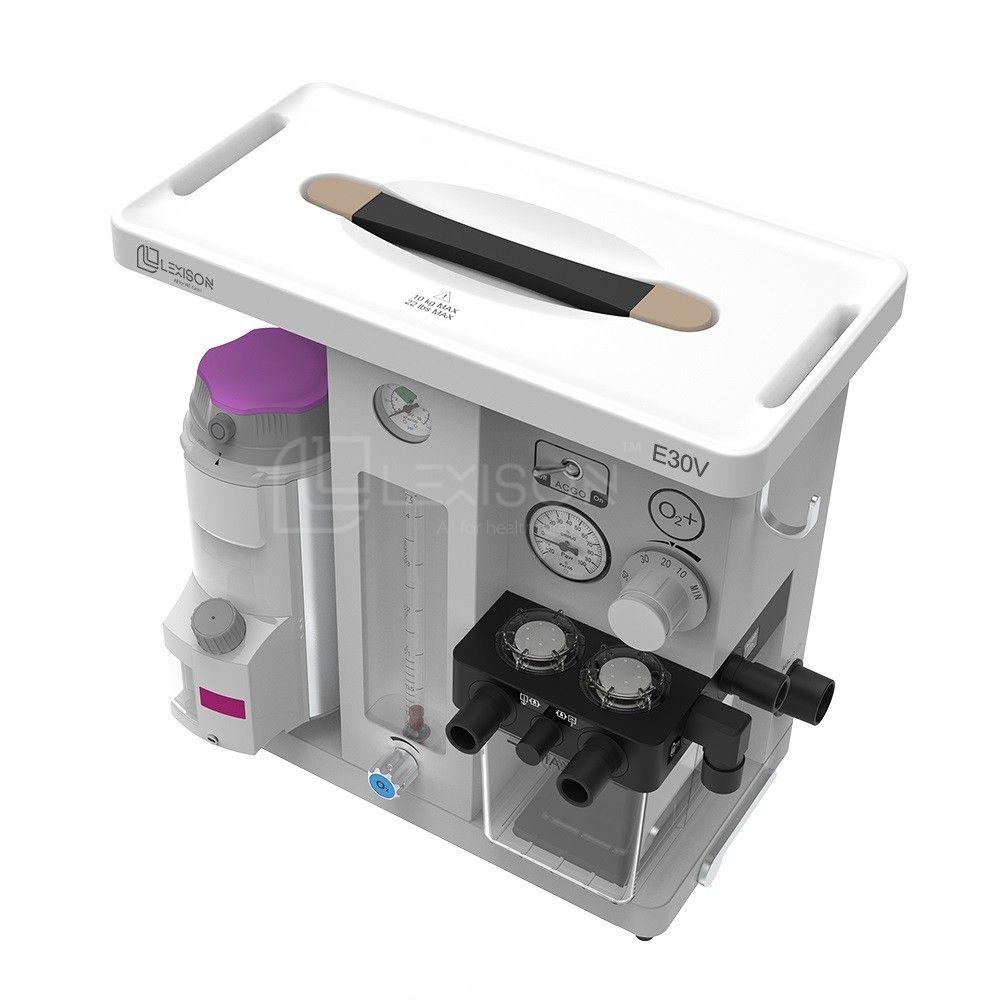

PRAT-E30V Veterinary use Anesthesia Machine
PRAT-E30V is a high-end anesthesia machine used in animal hospitals. The design of the product adheres to the concept of anesthesiologists-oriented, completely abandoning the design idea of traditional animal anesthesia machines that only considers product costs.
product description
PRAT-E30V is a high-end anesthesia machine used in animal hospitals. The design of the product adheres to the concept of anesthesiologists-oriented, completely abandoning the design idea of traditional animal anesthesia machines that only considers product costs.

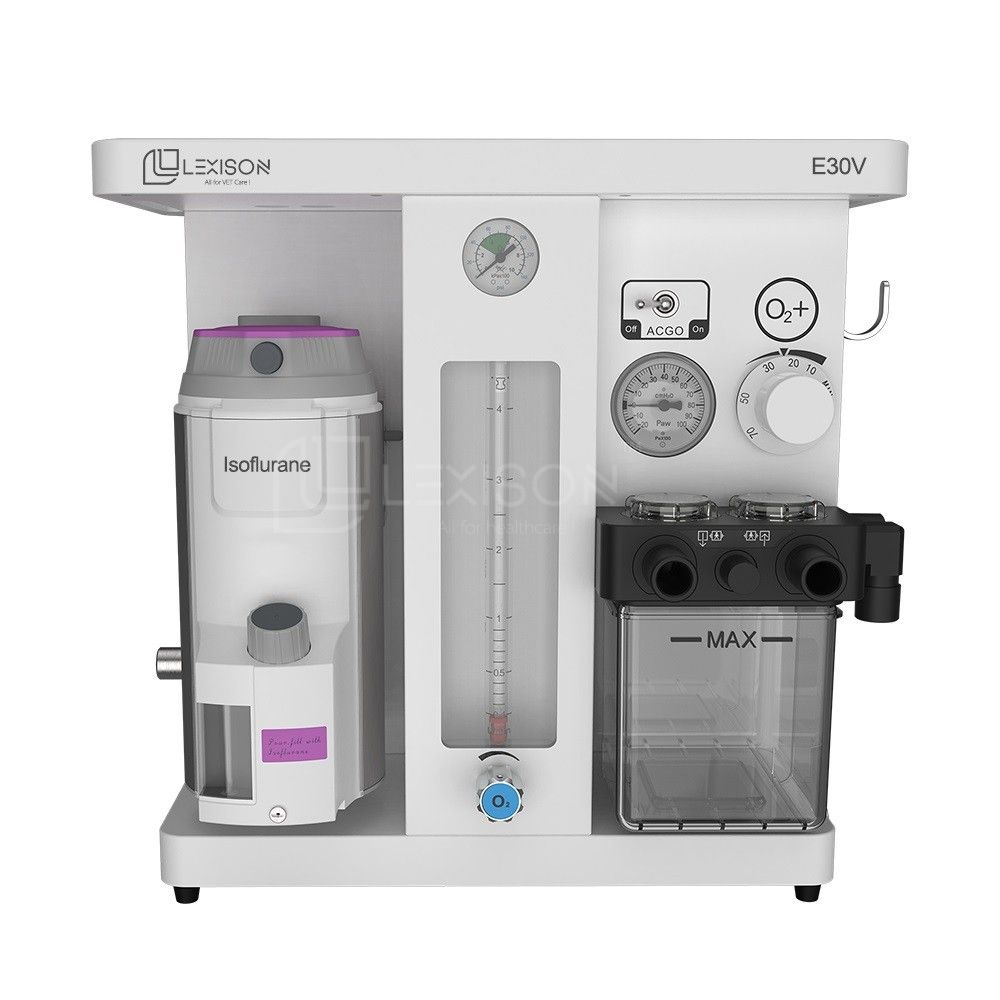

Through the innovation of product structure and circuit module design, all the gauges and main operating elements of E30V are arranged on the front of the product to facilitate the operation and observation, and also realizer a variety of installations and applications such as wall-mounted, desktop and stand/cart for one model.
Specification:
Gas Circuit System Specifications:
* Source Gas: Oxygen
* Air Source Pressure Range: 280 ~ 600kpa / 40 ~ 87psi
* Port Type: NIST/DISS
* Air Source Pressure Gauge: 0 ~ 1Mpa / 0 ~ 140psi
* Air Source Safety Valve: Built-in
* Flowmeter Adjustment Range: 0 ~ 4L/min (Single tube oxygen flowmeter)
* Vaporizer Base: Single tank position
Respiratory System Specifications:
* Airway Pressure Gauge: -20cmH2O ~ 100cmH2O
* APL Valve: Adjustment range: 0 ~ 70cmH2O, with one key closing button
* CO2 Absorber Canister: Volume 1400ml
Vaporizer Specifications:
* Vaporizer Types(Dosing method):
- Isoflurane (Pour-Fill, Key-Fill, Easy-Fill)
- Enflurane (Pour-Fill, Key-Fill, Easy-Fill)
- Sevoflurane (Pour-Fill, Key-Fill, Easy-Fill, Quick-Fill)
Weight:
- Empty sate: 4kg±0.3kg
- Full drug state: 5kg±0.3kg
Volume:
- Core drying: 300ml ~ 360ml
- Core wetting: 240ml ~ 300ml
- Between the maximum and minimum tick marks: 200ml ~ 260ml
Concentration Range:
- Isoflurane: 0 ~ 5vol,%
- Enflurane: 0 ~ 5vol,%
- Sevoflurane: 0 ~ 8vol,%
Concentration Accuracy: ±0.25vol,% or set value±20%, whichever is greater
Main unit Specifications:
Dimensions:
- Main Unit without Stand/Cart: Height 385mm, Width 405mm, Length/Depth 265mm

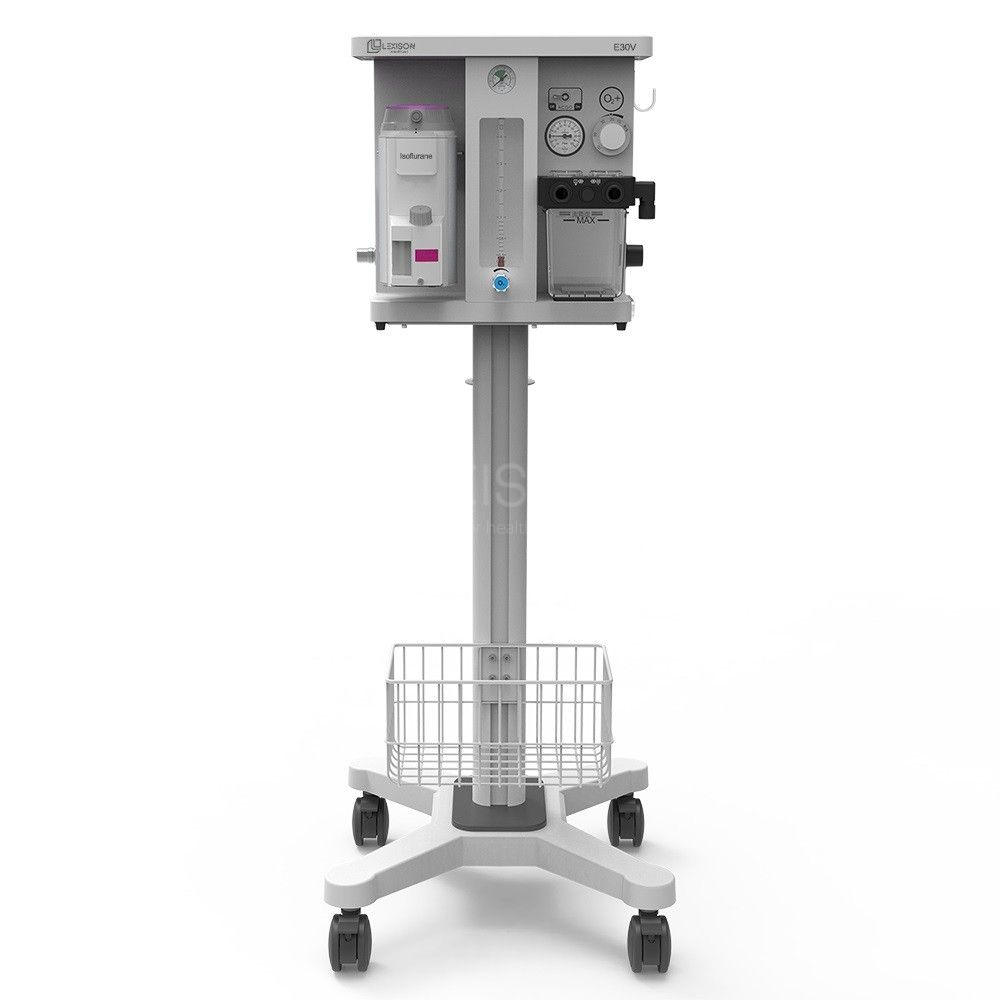

- Main Unit with Stand/Cart: Height 1230mm, Width 510mm, Length/Depth 470mm
Weight:
- ≤ 10kg (not includes Vaporizer, Stand/Cart and other accessories)
- ≤ 14kg (includes Vaporizer, not includes Stand/Cart and other accessories)
- ≤ 2kg (includes Vaporizer, Stand/Cart and other accessories)
* Maximum Load on Top: 10Kg
* Handle: Single handle, located in the middle of top.
