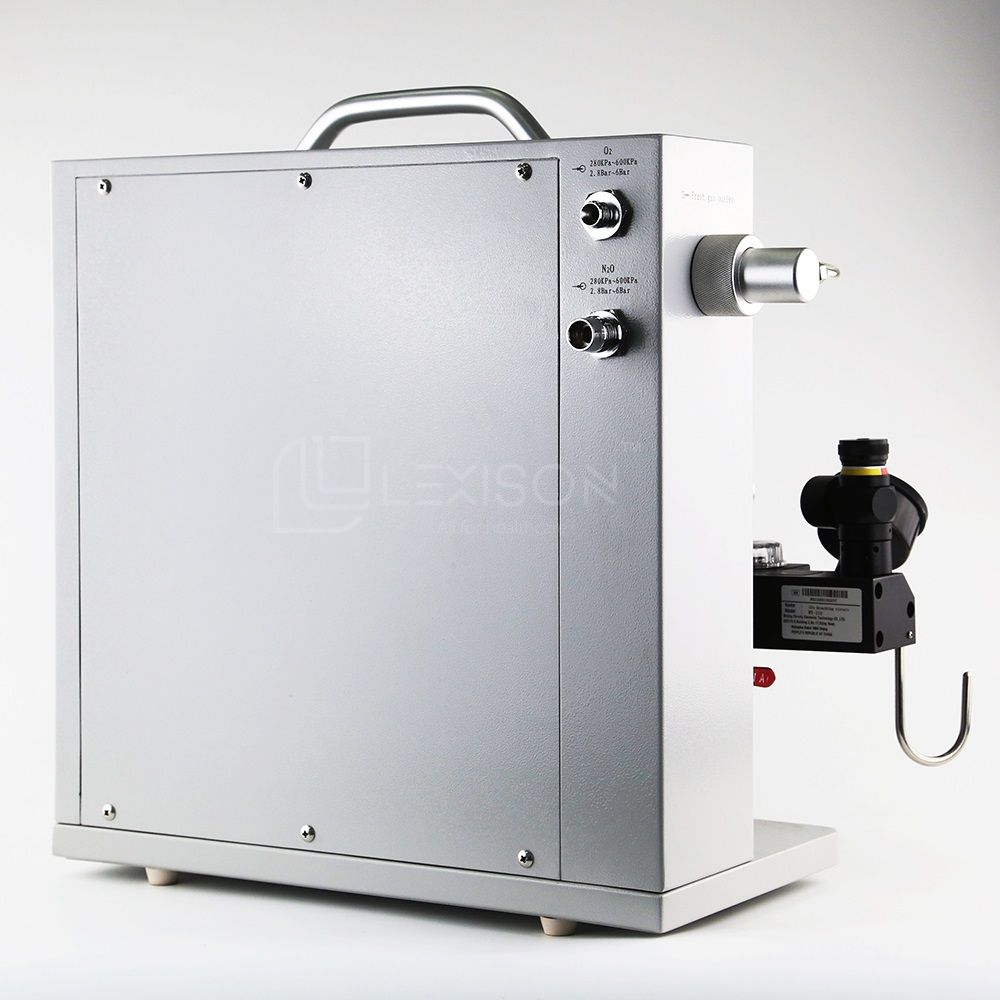

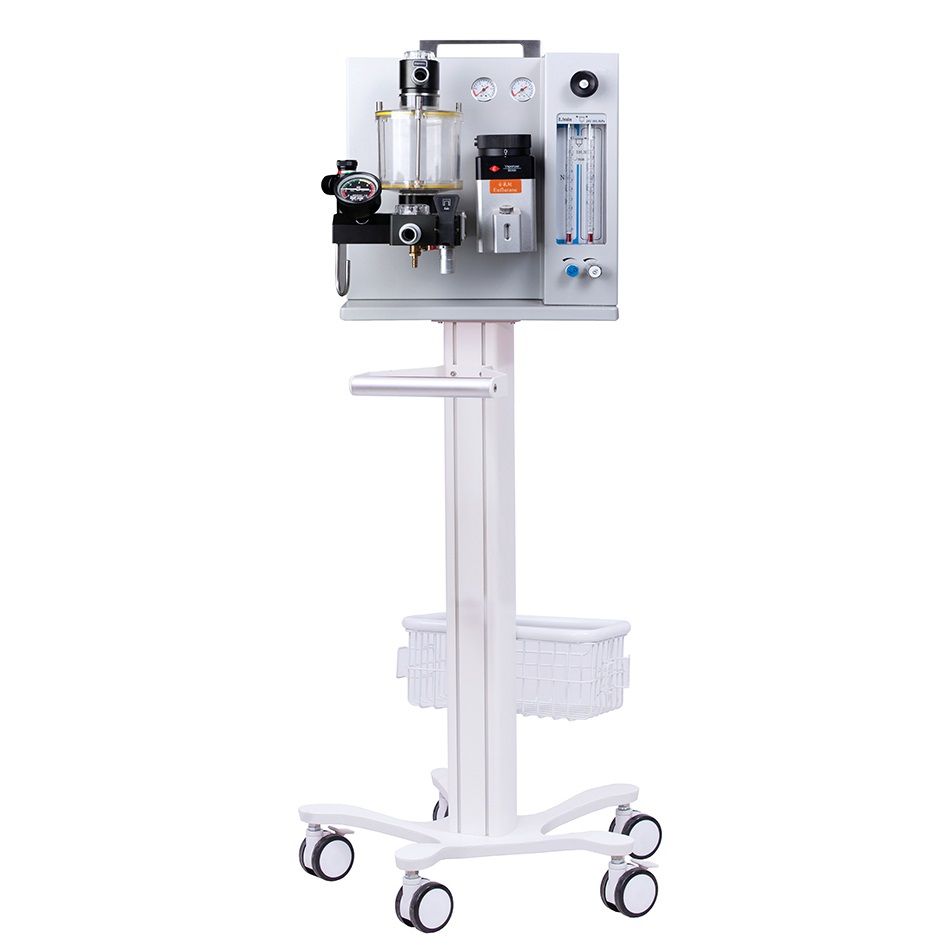

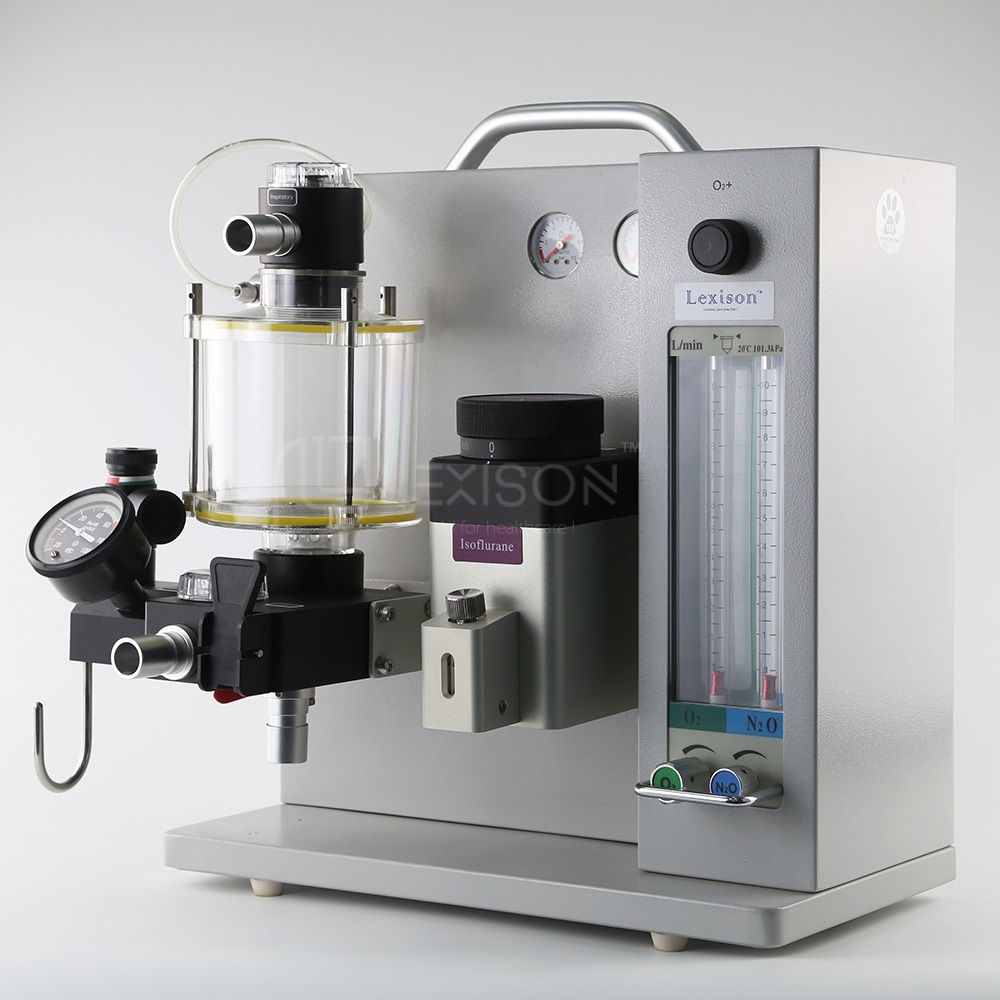

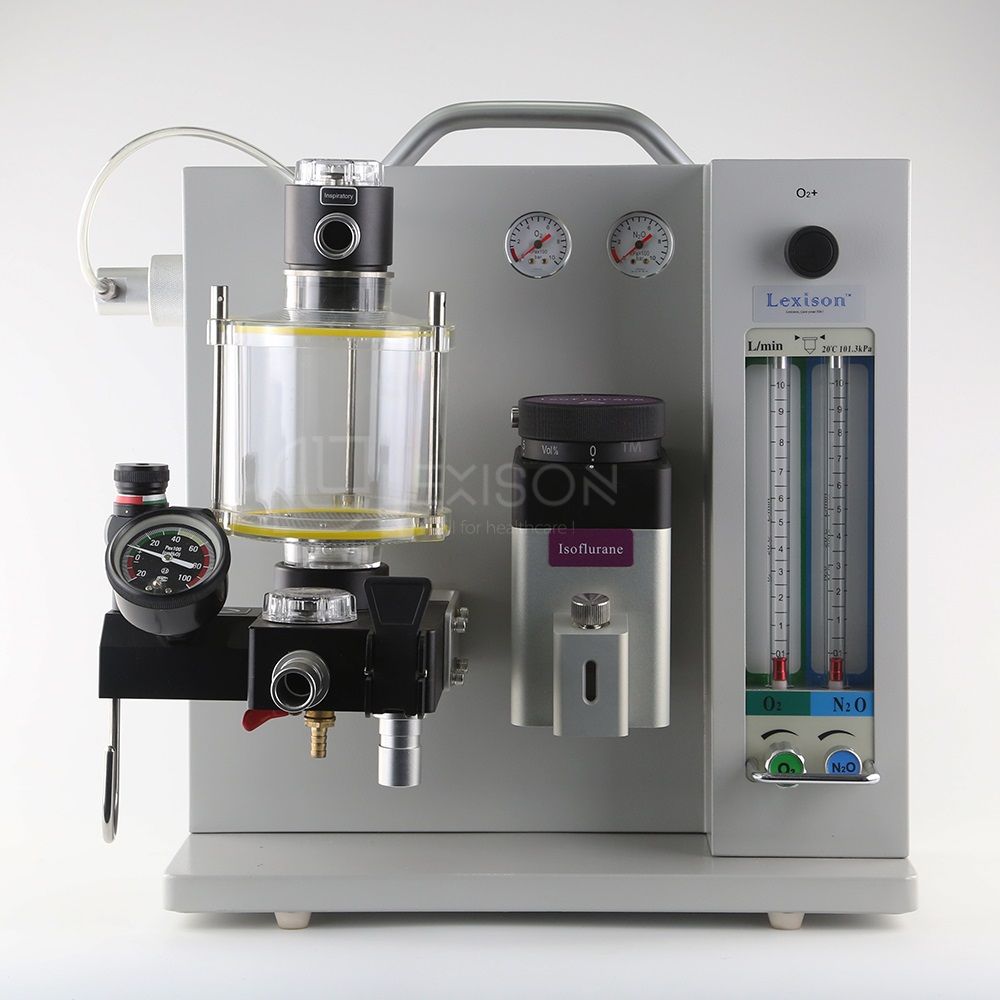

PRAT-E52V Veterinary Anesthesia Machine

Physical and Environmental Specification:

● Dimension: 450x405x330mm(LxWxH)

● Weight: 22Kg

● Sotrage Temperature: -22℃ ~ +55℃

● Working Temperature: +10℃ ~ +40℃

● Storage Humidity: ≤93%

Vaporizer:

● Agent: Sevoflurane; Halothane; Isoflurane

● Flow Range: 0.2 ~ 15L/min

● Concentration: 0 ~ 5.0% (Sevoflurane 0 -8%)

● Working Temperatre: 15℃ ~ 35℃

Main Unit:

● Mode: Semi-open, Semi-closed or Closed System

● Gas supply: O₂/N₂O   0.28Mpa ~ 0.6Mpa

● Flow Meter: O₂/N₂O   Two-tubes flowmeter, 0 ~ 10L/min

● With interlock protection devices, ensuring the oxygen concentration >21%

● O₂ Flush: 25 to 75 L/min

● O₂ Deficiency Alarm: Audible alarm for at least 7 seconds

● APL Valve: ≤6KPa
