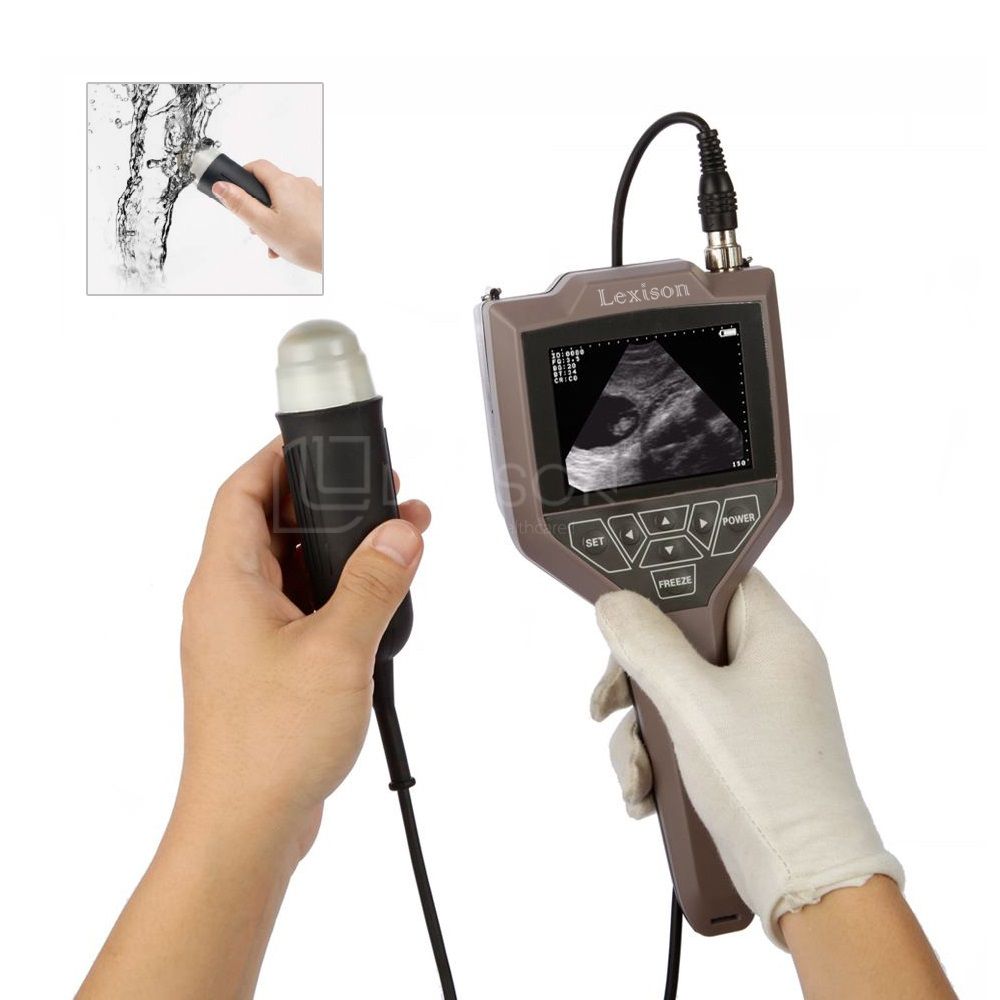

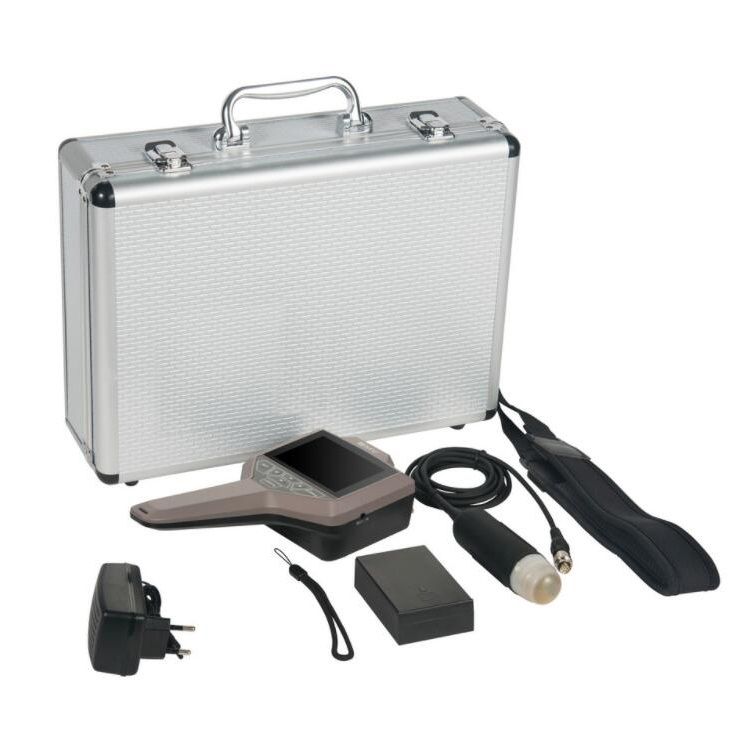

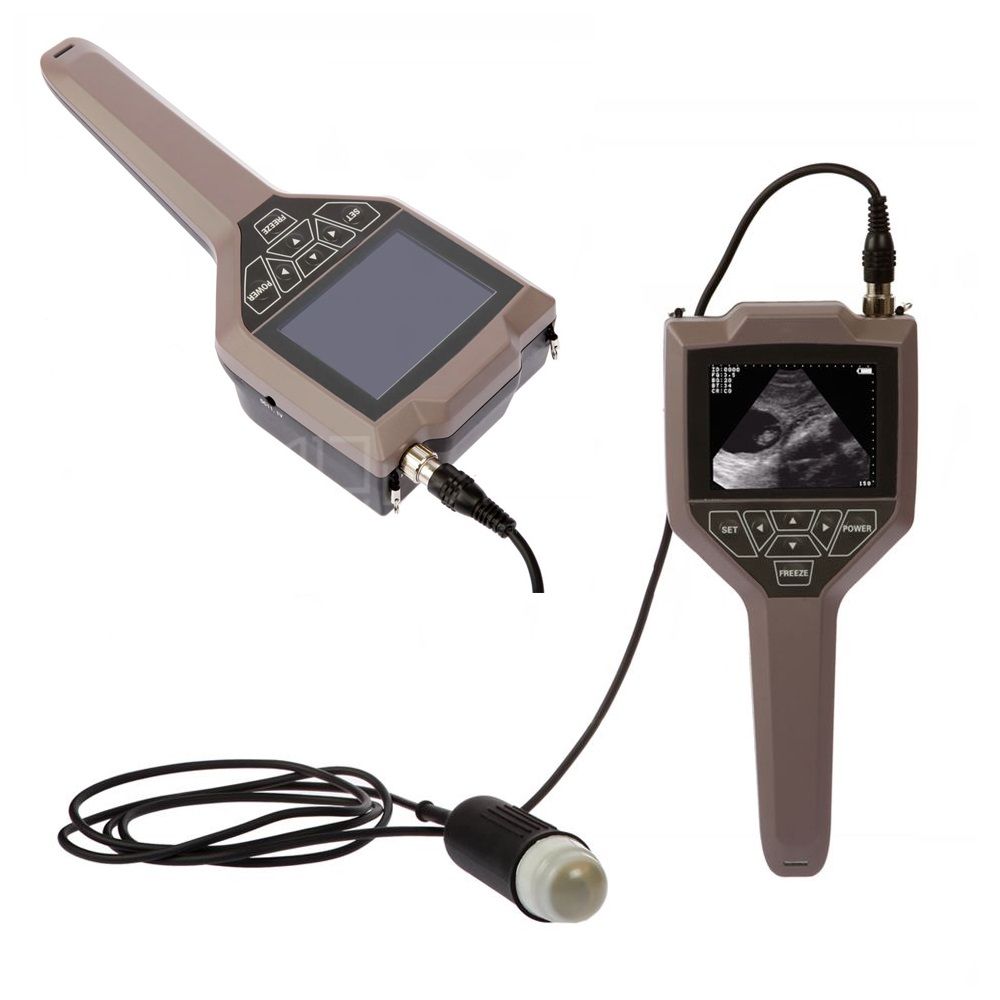

PRUS-S3V Full-digital Swine, Ovine Ultrasound Scanner

* 7 hours for continuous operation, meeting a long day scanning needs

* Only 325g, and modern ergonomics designing make it comfort to use

* 128 frames permanent storage, without loss of image when powered off

* High quality 3.8 inches TFT LCD screen providing a clear, transparent image

Share

product description

Early and independent diagnosis saves time and money.

PRUS-S3V is simple, yet very reliable and resistant,it will be suitable for harsh field conditions.


PRUS-S3V pregnancy in small livestock can be diagnosed at an early stage,

e.g. in pigs on the 19th day, in sheep on the 25th day, especially if the breeder is very experienced.


Main Features:

* 7 hours for continuous operation, meeting a long day scanning needs;

* Only 325g, and modern ergonomics designing make it comfort to use;

* Advanced full digital core technology to obtain high quality images, ensure accurate pregnancy check at early stage;

* 128 frames permanent storage, without loss of image when powered off;

* High quality 3.8 inches TFT LCD screen providing a clear, transparent image;

* Observation of foetus during pregnancy,

* Helps to reduce the cost of running a breeding farm through selection of pregnant female animals and appropriate breeding management.


Specifications:

Imaging ModeReal-time imaging, B, M mode
Probe TypeSector, Mechanical
Probe Frequency2.5/3.5/5.0MHz
Penetration Range18cm, 16cm, 15cm, 14cm, 13cm, 12cm, 11cm, 10cm, 9cm
Scanning Angle90 degree
DisplayHigh resolution 3.8inch Color TFT LCD
InterfaceMembrane keyboard
BatteryLi-Ion battery pack, 11.2V, 2600mAh
Operating Time7 hours of continuous operation (1 battery)
Charging Time

70-90min

Dimension24*12*5cm
Weight325g
